Hardware:

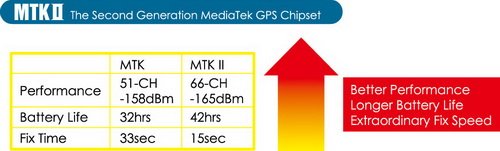

# Adopt MTK II latest chipset with high sensitivity -165dBm and 66-Channel tracking
# Ultra lower power consumption up to 42hrs operation
# Less than 15-Sec. AGPS fix support: download almanac data to realize faster TTFF and positioning under warm start
# Stand-Alone travel recorder to log up to 400,000 records (*)
# Easily switch Travel Recorder to LOG mode or NAV mode (Navigation + Log)
# Support button push manually to memorize your location immediately
# Update Rate 1~5Hz changeable by utility provided
# G-Mouse + Bluetooth in one: wired and wireless GPS receiver
# Fast Position Fix ,Cold start 35s, Warm start 33s,Hot start 1s
# Auto On-Off function for smart power control
# Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
# QZSS, DGPS(WAAS+EGNOS+MSAS) support
Software:
# Support Multi-mode setting to record data (Vehicle, Bicycle, Jog)
# Provide Travel Recorder PC Utility V4 with built-in Google Map, Multi-language support, and Visualization UI
# "Wizard interface" for Utility to easily manage importing and exporting tracks
# Provide RaceChrono 5Hz software for high speed sport racing
# Auto track split function helps you organize your travel path
# Support Track Edit function allowing you to remove unnecessary waypoints
# Track playback function, changeable different track color and name
# Active NMEA protocol VTG / GLL manually via Qstarz setup tool
# Output your travel record as GPX / CSV / NMEA / Google Earth file format.
# Draw your navigation path immediately on Google Earth as default
# Support GeoTagging function for digital photo and generate KMZ file easily
# The waypoints would be decreased when the more options of Log Format are selected
- Time to First Fix (TTFF) : < Average 1/33/35 sec. (Hot/Warm/Cold start) AGPS: < 15 sec.
- Output Message : NMEA 0183 v3.01 (Default: GGA, GSA, GSV, RMC; Optional: VTG, GLL)
- Accuracy : Without aid: 3.0m 2D-RMS <3m CEP(50%) without SA(horizontal) DGPS (WAAS, EGNOS, MSAS):2.5m
- Frequency: 1 - 5 Hz user configurable
- Dimension: 72.2 (L) X 46.5 (W) X 20 (H) mm
